SSMA Male RF Coaxial Connector – Compatible with 1# Semi-Rigid/Semi-Flexible Cable

  • 1
  • 2

Brand Name : SIPU

Place of Origin : CHINA

MOQ : 100

Payment Terms : L/C, T/T, Western Union

Model Number : SSMA-JB1-1

Certification : IOS9001-2017, RoHS, CE

Packaging Details : Carton

Price : Discuss

Delivery Time : 6-8weeks

Supply Ability : 100000pcs/year

Product name : SSMA Male RF Coaxial Connector – Compatible with 1# Semi-Rigid/Semi-Flexible Cable

Gender : Male

Type : Straight

Material : Brass

Plating : Gold

Durability : 500 times

Contact Now

SSMA Male RF Coaxial Connector – Compatible with 1# Semi-Rigid/Semi-Flexible Cable

Product Overview

The SSMA series is a miniaturized RF coaxial connector derived from the SMA series, offering a compact form factor, wide frequency bandwidth, excellent mechanical and electrical performance, and high reliability. It is widely used in aerospace, aviation, microwave communications, and other high-frequency applications.

Applications:
Base stations, electronic components, test and measurement instruments, telecommunication systems, and RF cable assemblies.

Product Features:

Mates with 1# semi-rigid or semi-flexible coaxial cable (e.g., 670-047)

Compact size, ideal for space-constrained applications

Excellent electrical performance and signal integrity

High reliability under mechanical and environmental stress

Easy to solder and integrate into assemblies

Suitable for high-frequency applications up to 26.5 GHz

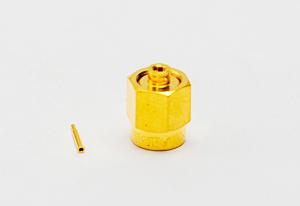

Product Appearance

SSMA Male RF Coaxial Connector – Compatible with 1# Semi-Rigid/Semi-Flexible Cable

Important Technical Parameter

Electrical property

 Temperature range -65～+125℃

Characteristic impedance

 50Ω Frequency range DC-30GHz

Dielectric withstanding voltage

 750V VSWR ≤1.1+0.015F(GHz)

Insulation resistance

 ≥1000MΩ Insertion loss ≤0.05√F(GHz)dB

Contact resistance

 Center conductor ≤4.0mΩ Mechanical property
Outer conductor ≤2.5mΩ Durability 500times

Materials and Surface Treatment

Center conductor

 Bronze,gold plating Insulating medium PTFE

Outer conductor

 Brass,gold plating Sealing ring Silicon rubber

Product Image Gallery

SSMA Male RF Coaxial Connector – Compatible with 1# Semi-Rigid/Semi-Flexible CableSSMA Male RF Coaxial Connector – Compatible with 1# Semi-Rigid/Semi-Flexible Cable
