SSMA Male RF Coaxial Connector – Compatible with RG316/U Cable

  • 1
  • 2
  • 3

Brand Name : SIPU

Place of Origin : CHINA

MOQ : 100

Payment Terms : L/C, T/T, Western Union

Model Number : SSMA-J3

Certification : IOS9001-2017, RoHS, CE

Packaging Details : Carton

Price : Discuss

Delivery Time : 6-8weeks

Supply Ability : 1000000pcs/year

Product name : SSMA Male RF Coaxial Connector – Compatible with RG316/U Cable

Durability : 500 times

Gender : Male

Type : Straight

Material : Brass

Plating : Gold

Contact Now

SSMA Male RF Coaxial Connector – Compatible with RG316/U Cable

Product Overview

The SSMA series connector is a miniaturized version of the SMA series, offering compact size, wide frequency bandwidth, excellent mechanical and electrical performance, and high reliability. It is compliant with IEC 60169-18 standards and widely used in microwave equipment and digital communication systems.

Applications:
Base stations, test instruments, electronic components, telecommunication systems, and other RF applications.

Product Features:
Designed for use with RG316/U coaxial cable, this connector features a lightweight and compact design, outstanding mechanical and electrical properties, and a highly reliable connection—ideal for space-constrained, high-performance RF environments.

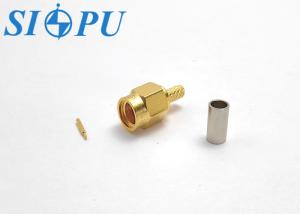

Product Appearance

SSMA Male RF Coaxial Connector – Compatible with RG316/U Cable

Important Technical Parameter

Electrical property

 Temperature range -65～+125℃

Characteristic impedance

 50Ω Frequency range DC-30GHz

Dielectric withstanding voltage

 750V VSWR ≤1.05+0.012F(GHz)

Insulation resistan

 ≥1000MΩ Insertion loss ≤0.05√F(GHz)dB

Contact resistance

 Center conductor ≤4.0mΩ Mechanical property
Outer conductor ≤2.5mΩ Durability 500times

Materials and Surface Treatment

Center conductor

 Bronze,gold plating Insulating medium PTFE

Outer conductor

 Brass,gold plating Sealing ring Silicon rubber

Product Image Gallery

SSMA Male RF Coaxial Connector – Compatible with RG316/U CableSSMA Male RF Coaxial Connector – Compatible with RG316/U CableSSMA Male RF Coaxial Connector – Compatible with RG316/U CableSSMA Male RF Coaxial Connector – Compatible with RG316/U Cable
