Product name : TNC Male RF Coaxial Connector – Nickel Plated, Compatible with RG316/U Cable
Gender : Male
Type : Straight
Material : Brass
Plating : Nickle
Insulating medium : PTFE
Durability : 500 times
Product Overview
The TNC series is a threaded RF coaxial connector designed for small to medium-power applications. Developed in accordance with MIL-C-39012 and IEC 60169-17 standards, it is the threaded variant of the BNC series and is particularly well-suited for mobile communication equipment operating in high-vibration environments.
Application Scope:
Communication systems, radio equipment, instrumentation, and other RF applications.
Product Features:
Hexagonal threaded coupling for secure mechanical connection
Compatible with RG316/U coaxial cable
Wide operating frequency bandwidth
Reliable electrical contact and low signal loss
Excellent vibration resistance and long-term durability
Product Specifications
Important Technical Parameters
Electrical property
| Temperature range | -55~+165℃ | ||
Characteristic impedance
| 50Ω | Frequency range | DC-11GHz | |
Dielectric withstanding voltage
| 1500V | VSWR | ≤1.3 | |
Insulation resistance
| ≥5000MΩ | Insertion loss | ≤0.06√F(GHz)dB | |
Contact resistance | Center conductor | ≤2.0mΩ | Mechanical property | |
Outer conductor | ≤0.2mΩ | Durability | 500times |
Materials and Surface Treatment
Center conductor
| Bronze, gold plating | Insulating medium | PTFE |
Outer conductor
| Brass, nickel plating | / | / |
Product Image Gallery
![]() |

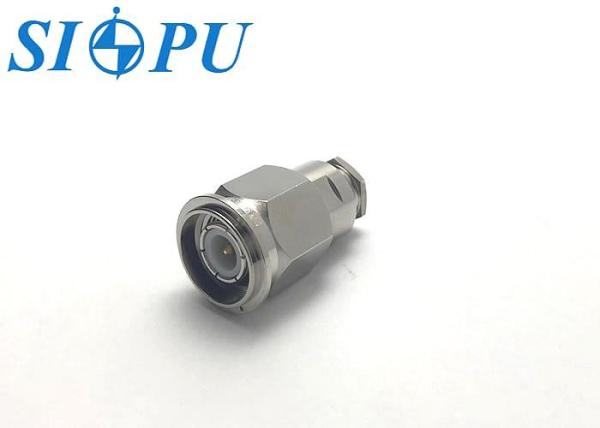

TNC Male RF Coaxial Connector – Nickel Plated, Compatible with RG316/U Cable Images |
