BNC Female RF Coaxial Connector – Flange Mount, for RG316/U Cable

  • 1
  • 2
  • 3

Brand Name : SIPU

Place of Origin : CHINA

MOQ : 100

Payment Terms : Gender

Model Number : BNC-KF3

Certification : ISO9001, RoHS, CE

Packaging Details : Carton

Price : Discuss

Delivery Time : 6-8weeks

Product name : BNC Female RF Coaxial Connector – Flange Mount, for RG316/U Cable

Gender : Female

Type : Straight

Material : Brass

Plating : Nickle

Insulating medium : PTFE

Durability : 500 times

Contact Now

BNC Female RF Coaxial Connector – Flange Mount, for RG316/U Cable

Product Overview

The BNC connector is a low-power, bayonet-style RF coaxial interface designed for quick and secure connections. Its easy connect/disconnect mechanism makes it ideal for applications requiring frequent reconnections.

Applications:
Widely used in electronic instrumentation, radio systems, and both analog and digital video signal transmission.

Key Features:

Four-hole flange-mounted design

Compatible with RG316/U coaxial cable

Secure and reliable contact

Excellent vibration resistance

Quick and efficient mating/unmating

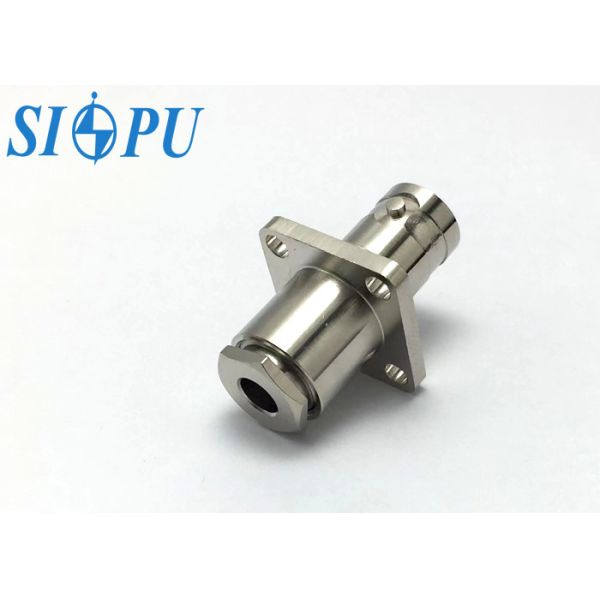

Product Appearance

BNC Female RF Coaxial Connector – Flange Mount, for RG316/U Cable

Important Technical Parameters

Electrical property

 Temperature range -55～+165℃

Characteristic impedance

 50Ω Frequency range DC-4GHz

Dielectric withstanding voltage

 1500V VSWR ≤1.3

Insulation resistance

 ≥5000MΩ Insertion loss

≤0.06√F(GHz)dB
Contact resistance Center conductor ≤2.0mΩ Mechanical property
Outer conductor ≤0.2mΩ Durability 500times

Materials and Surface Treatment

Center conductor

 Beryllium bronze,gold plating Insulating medium PTFE

Outer conductor

 Brass,nickel plating / /

Product Image Gallery

BNC Female RF Coaxial Connector – Flange Mount, for RG316/U CableBNC Female RF Coaxial Connector – Flange Mount, for RG316/U Cable
