SMA Male RF Coaxial Connector – Right Angle, Compatible with CXN3506 Cable

  • 1
  • 2
  • 3

Brand Name : SIPU

Place of Origin : China

MOQ : 100

Payment Terms : L/C, T/T, Western Union

Model Number : SMA-JW3506G

Certification : ISO9001-2017, RoHS, CE

Packaging Details : Carton

Price : Discuss

Delivery Time : 6-8Weeks

Supply Ability : 100000pcs/yesr

Product name : SMA Male RF Coaxial Connector – Right Angle, Compatible with CXN3506 Cable

Gender : Male

Type : Right angle

Material : Brass

Plating : Gold

Durability : 500 times

Contact Now

SMA Male RF Coaxial Connector – Right Angle, Compatible with CXN3506 Cable

Product Overview

The SMA connector is a compact, threaded RF coaxial connector known for its wide frequency bandwidth, excellent mechanical and electrical performance, and high reliability. It is widely used in RF circuits of microwave devices and digital communication systems, whether for connecting microstrip lines or coaxial cables—making it one of the most commonly used RF connectors today.

Applications
Test instruments, wireless communication systems, network equipment, radar modules, and microwave devices.

Key Features

Right-angle (bent) structure for efficient cable routing in tight spaces

Compatible with CXN3506 semi-flexible coaxial cable

Threaded coupling ensures strong mechanical stability

High reliability and excellent electrical performance

Strong interchangeability with standard SMA interfaces

Easy to solder and integrate into high-frequency RF systems

Product Appearance

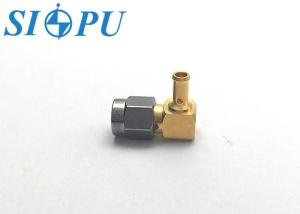

SMA Male RF Coaxial Connector – Right Angle, Compatible with CXN3506 Cable

Important Technical Parameter

Electrical property

 Temperature range -65～+125℃

Characteristic impedance

 50Ω Frequency range DC-18GHz

Dielectric withstanding voltage

 1000V VSWR ≤1.06+0.015F(GHz)

Insulation resistance

 ≥5000MΩ Insertion loss ≤0.08√F(GHz)dB

Contact resistance

 Center conductor ≤3.0mΩ Mechanical property
Outer conductor ≤2.0mΩ Durability 500times

Materials and Surface Treatment

Center conductor

 Brass, gold plating Insulating medium PTFE

Outer conductor

 Brass, gold plating Sealing ring Silicon rubber

Product Image Gallery

SMA Male RF Coaxial Connector – Right Angle, Compatible with CXN3506 CableSMA Male RF Coaxial Connector – Right Angle, Compatible with CXN3506 Cable


Product Tags:

Coaxial SMA RF Connector



CXN3506 Cables SMA RF Connector



Angled SMA RF Connector


Wholesale SMA Male RF Coaxial Connector – Right Angle, Compatible with CXN3506 Cable from china suppliers
